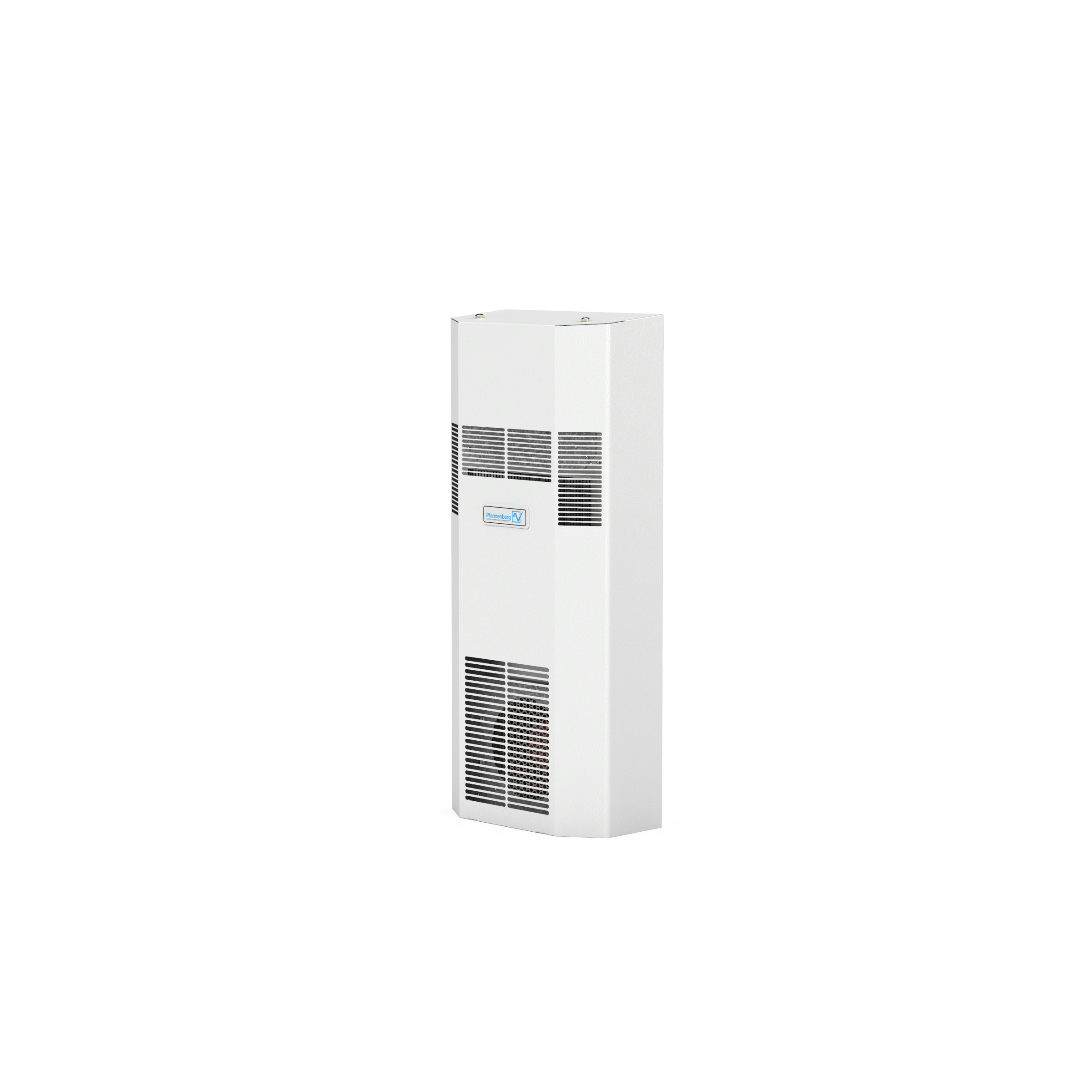

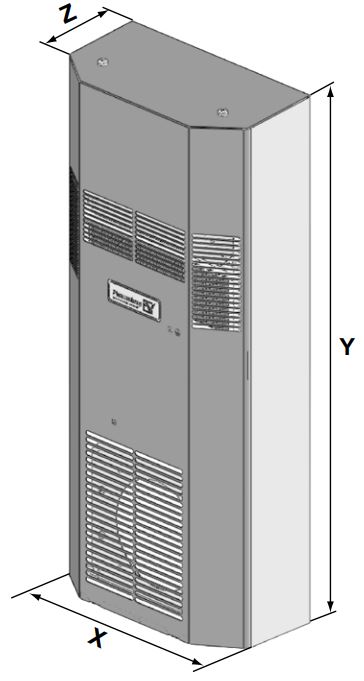

PAS 6133 Side Mount Air/Air Heat Exchanger

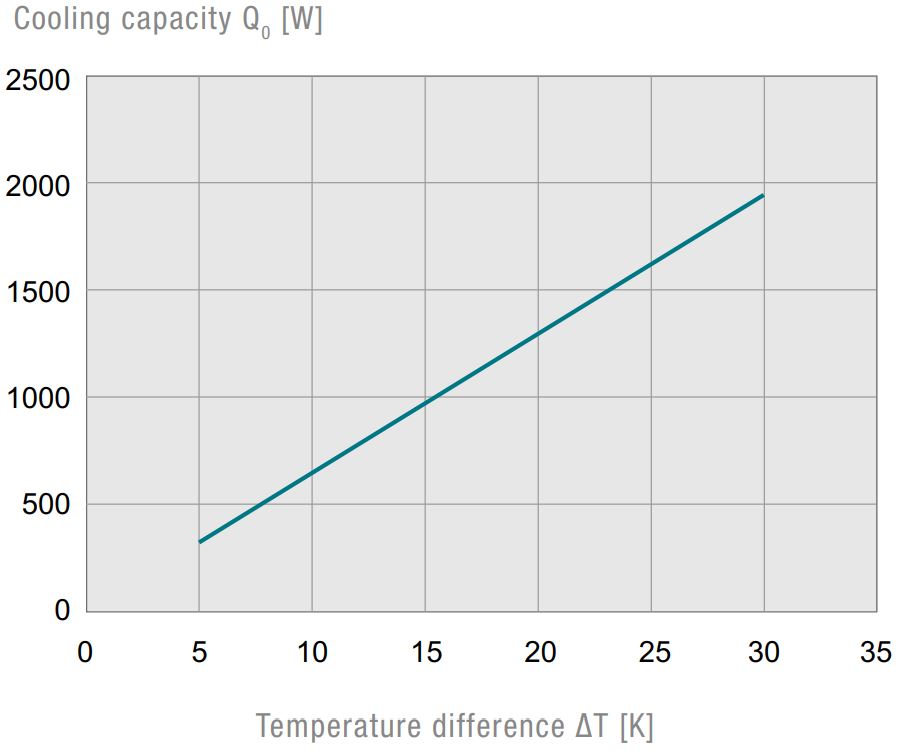

The use of ambient air to air condition the control cabinet is the most economical and energy-efficient type of cooling. In many applications, the ambient air is contaminated with dust, liquids or gases, so that components installed in the control cabinet can be damaged on contact. The use of a filter fan is therefore no longer possible. The Pfannenberg air/air heat exchangers are the ideal solution for these areas of application.
Advantages of the series at a glance:

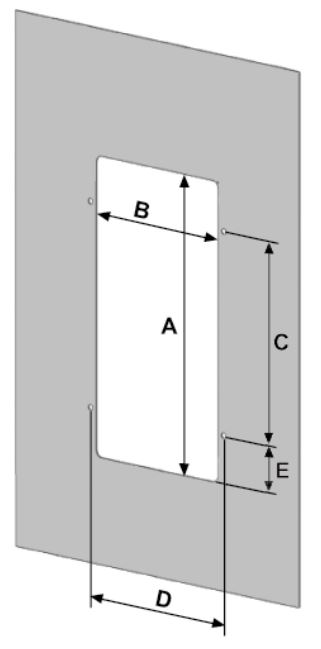

-obust steel cover, easily paintable -cut-out compatible with DTS 9041 -mounting-friendly seal, no elaborate reworking of the mounting cut-out -integrated thermostat for temperature control -additional thermostat for excessive temperature warning -maintenance-free -large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated -The interior of the control cabinet is hermetically separated from the atmosphere.
