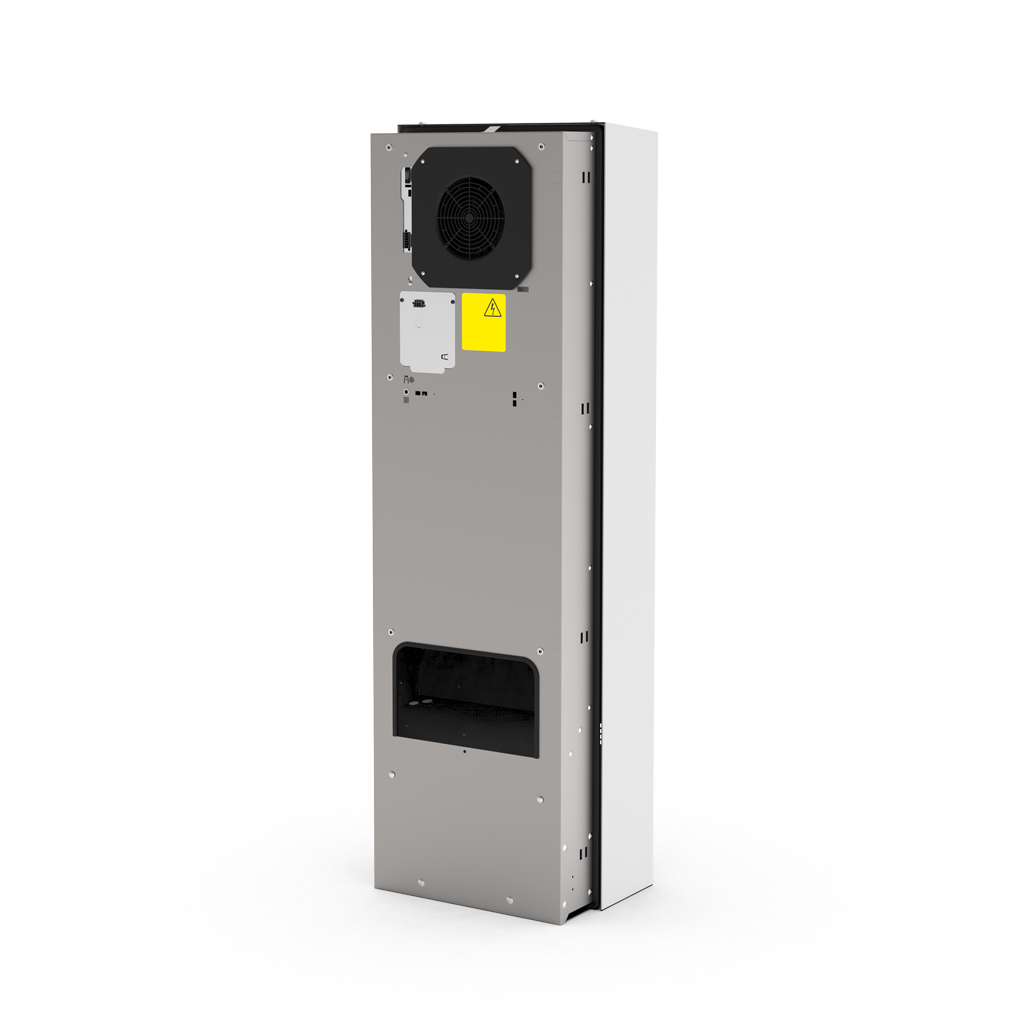

DTI 6X2E Partially Recessed Cooling Unit
With the cooling units of our DTI and DTS series, two product lines for partially recessed side mounting (DTI) and side mounting (DTS) are available for any enclosure size. They are particularly energy-efficient and service-friendly. Further advantages of the series at a glance: -thanks to highly efficient speed control, every unit covers a wide performance range. This leads to a small type diversity and correspondingly to a large design safety. -amongst others innovations, the brushless direct current technology (BLDC) makes the market highest energy efficiency. -XC Controller: the operating unit which was developed from Pfannenberg especially for this series makes communication between the cooling unit and machine control possible and also the integration into production processes -large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated -exceptional serviceability and optional filter (easy to retrofit) -communication interface Modbus to integrate the cooling unit into the existing machine control or in a cloud solution
技术数据
- 额定电压 ±10 %
- AC 230 1~
- 额定频率 ±1 %
- 50 Hz | 60 Hz
- 制冷能力 W
- 2.000 - 4.500 W
- 制冷能力 根据 EN 14511 (A35/A50)
- 2.000 - 3.700 W
- 功率（A35/A35）
- 440 - 1.770 W
- 启动电流 (A35/A35)
- 12,2 A
- 无阻力内部风量（自由风量）
- 1.430 m3/h
- 控制器
- Premium Controller
- 熔断器类型
- T | 16 A
- 连接方式
- ?????????
- 环境温度 °C
- +15 °C ... +55 °C
- 控制范围 （可调）
- +25 °C ... +50 °C
- 制冷剂 (类型 | 充注量)
- R134a | 1.950 g
- 冷凝水管理
- integrated condensate evaporation system with safety overflow
- IP防护等级
- IP 54
- NEMA 防护等级
- TYPE12
- 系统防护等级 根据 EN 60529 面向环境
- IP 34
- 外壳钣金
- electrostatically powder coated (200C)
- 钣金颜色
- RAL 7035
- 安装位置
- ????
- 尺寸 (高 | 宽 | 深)
- 1.538 mm | 485 mm | 372 mm
- 安装深度 (mm)
- 120 mm
- ETIM - 分类
- EC000855
- 额定电压 ±10 %
- AC 230 1~
- 额定频率 ±1 %
- 50 Hz | 60 Hz
- 功率（A35/A35）（英制）
- 440 - 1,770 W
- 启动电流 (A35/A35) （英制）
- 12.2 A
- 无阻力内部风量（自由风量）（英制）
- 842 cfm
- 控制器
- Premium Controller
- 熔断器类型
- T | 16 A
- 连接方式
- ?????????
- 净重（英制）
- 185.22 lbs
- 环境温度范围（英制）
- +59 °F ... +131 °F
- 控制范围（可调）（英制）
- +77 °F ... +122 °F
- 制冷剂 (类型 | 充注量)（英制）
- R134a | 55,281.57 oz.
- 冷凝水管理
- integrated condensate evaporation system with safety overflow
- IP防护等级
- IP 54
- NEMA 防护等级
- TYPE12
- 系统防护等级 根据 EN 60529 面向环境
- IP 34
- 外壳钣金
- electrostatically powder coated (200C)
- 钣金颜色
- RAL 7035
- 安装位置
- ????
- 安装深度（英制）
- 4.72 in.
- ETIM - 分类
- EC000855

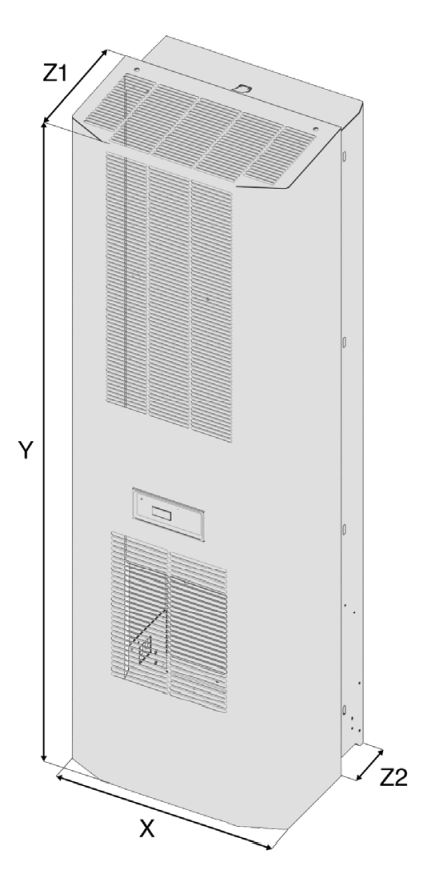

技术图纸
技术图纸
配件
Recommended Accessoires For DTI 6X2E Partially Recessed Cooling Unit
配件
Recommended Accessoires For DTI 6X2E Partially Recessed Cooling Unit
下载
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| DTI_6X2E | Englisch | ZIP | 7.24 MB | Download |

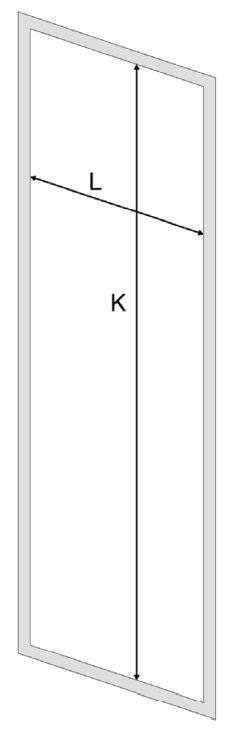

| DTI_6XxE_cut-out | German | DXF | 126.74 KB | Download |
| DTI_6XxE_cut-out | Englisch | DXF | 126.74 KB | Download |
| DTI_6X2E | German | ZIP | 7.24 MB | Download |
| Pfannenberg_Cooling_Units_EAC_Certificate_Russian | German | 1.57 MB | Download | |
| Pfannenberg_Cooling_Units_EAC_Certificate_Russian | Englisch | 1.57 MB | Download | |
| 086100099e | German | 4.7 MB | Download | |
| Pfannenberg_Product_Sheet_DT6XxE_de | German | 666.03 KB | Download | |
| Pfannenberg_Product_Sheet_DT6XxE_en | Englisch | 664.15 KB | Download | |
| 086100099e | Englisch | 4.7 MB | Download |
