BR50-LED-CL HI AM 24AC/DC WH
产品编号:
28250376042
Amber BR50 continuous-light module including replaceable LED
- up to 5 modules with 6 lens colours. They can be combined as desired by simply plugging them together, even in the field
- Can be used everywhere where machine statuses need to be displayed and warning signals given
- Modular design with sturdy housing for all indoor and outdoor applications in tough conditions
- Types of modules include LED continuous lights or blinking light (1.5 Hz), flashing light, sounder 85 dB (A)
- Flexible building kit system guarantees easy handling
- Mechanical and electronics are decoupled, this results in a more stable construction that is less sensitive to vibrations
- Many different variations, can be fixed by means of tubular stand, tube or direct mounting
- Monitored module for greater safety, the light source has two separate LED strands. If one strand fails, the alarm contact is activated and the second strand continues to light
- High system of protection IP 54 (optionally IP 65)
- Dimensions: Ø 54 x 63mm per light module
技术数据
技术数据
- 灯罩颜色
- Clear
- 外壳颜色
- Acrylonitrile Butadiene Styrene (ABS)
- 电压范围（DC）
- 10,0-27 V DC
- 电压范围（AC）
- 10,0-27 V AC
- 额定电压（DC）
- 12,24 V DC
- 额定电压 (AC)
- 12,24 V AC
- 电流类型
- AC/DC
- 工作温度 °C
- -25 °C ... +50 °C
- IP防护等级
- 54
- 最大相对湿度
- 90 %
- 可使用率
- 100 %
- 最大电流
- 0,12 A
- 灯泡类型
- LED
- 工作模式
- Continuous Light
- 光强
- 15 cd
- AS-i
- no
- IO-Link
- no
- M12 - 连接
- no
- 监控功能
- no
- 尺寸 (高 | 宽 | 深)
- 81,5 mm | 56 mm | 56 mm
- 净重
- 0,09 kg
- ETIM - 分类
- EC000232
- 灯罩颜色
- Clear
- 外壳颜色
- Acrylonitrile Butadiene Styrene (ABS)
- 电压范围（DC）
- 10,0-27 V DC
- 电压范围（AC）
- 10,0-27 V AC
- 额定电压（DC）
- 12,24 V DC
- 额定电压 (AC)
- 12,24 V AC
- 电流类型
- AC/DC
- 工作温度（英制）
- -13 °F ... +122 °F
- IP防护等级
- 54
- 最大相对湿度
- 90 %
- 可使用率
- 100 %
- 最大电流 （英制）
- 0.12 A
- 灯泡类型
- LED
- 工作模式
- Continuous Light
- 光强
- 15 cd
- AS-i
- no
- IO-Link
- no
- M12 - 连接
- no
- 监控功能
- no
- 尺寸 (高 | 宽 | 深) （英制）
- 3.21 in. | 2.2 in. | 2.2 in.
- 净重（英制）
- 0.2 lbs
- ETIM - 分类
- EC000232
Technical Data

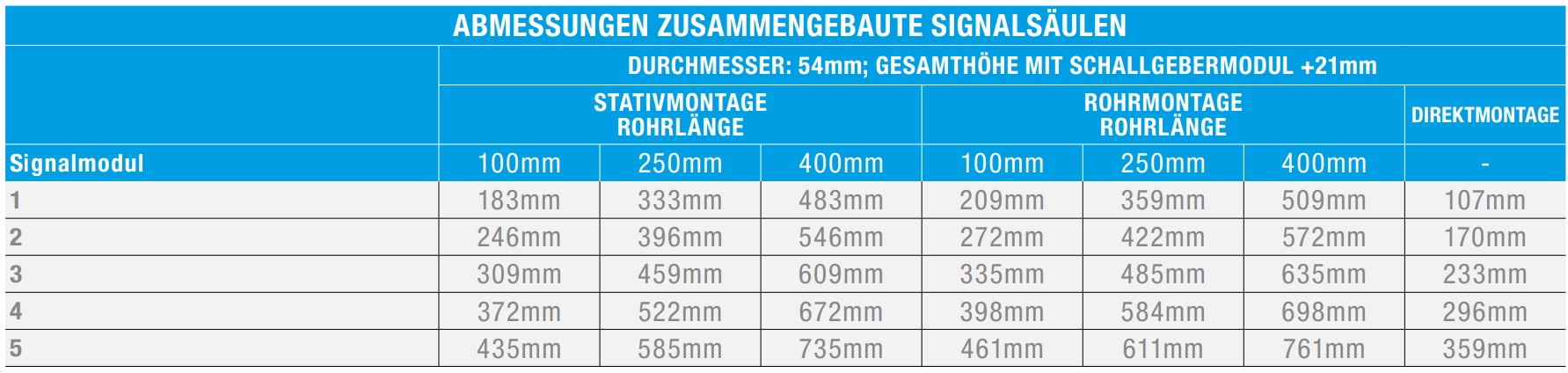

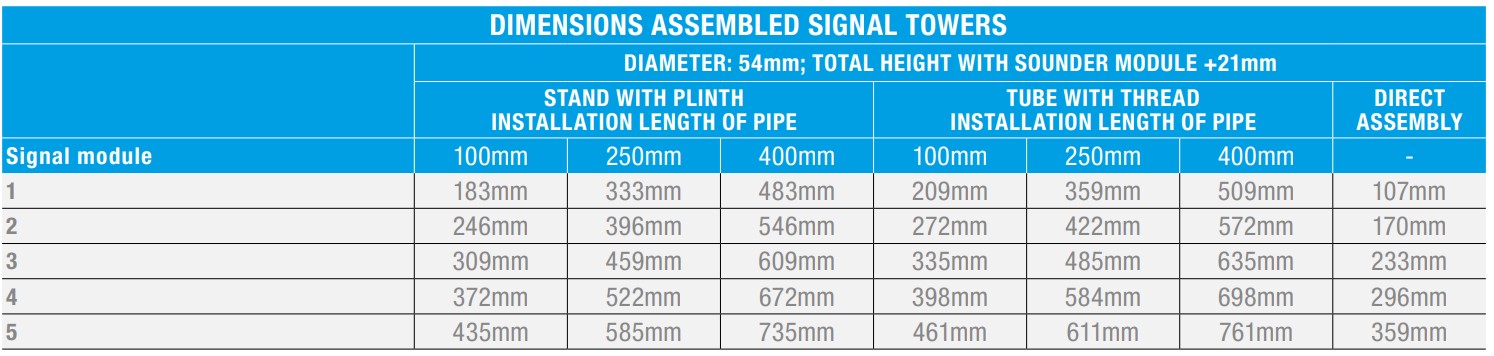

技术图纸
![BR50-LED-CL HI AM 24AC/DC WH]( "BR50-LED-CL HI AM 24AC/DC WH")
![BR50-LED-CL HI AM 24AC/DC WH]( "BR50-LED-CL HI AM 24AC/DC WH")
![BR50-LED-CL HI AM 24AC/DC WH]( "BR50-LED-CL HI AM 24AC/DC WH")
![BR50-LED-CL HI AM 24AC/DC WH]( "BR50-LED-CL HI AM 24AC/DC WH")
技术图纸
技术图纸
MULTICAD 数据
Multicad 数据
下载
下载
| Description | Language | Type | Size | Link |
|---|---|---|---|---|
| UL_Certificate_BR50 | Englisch | 225.27 KB | Download | |
| Manual_Signal_Tower_BR_50 | Englisch | 4.3 MB | Download | |
| 3D-model_STEP_SAT_IGS_BR50 | Englisch | ZIP | 12.86 MB | Download |
| EAC_Certificate_Signaling | Englisch | 293.12 KB | Download | |
| Order_options_How_to_configurate_BR50 | German | 1.88 MB | Download | |
| Manual_Signal_Tower_BR_50 | German | 4.3 MB | Download | |
| Product_Sheet_EN_BR50 | Englisch | 1.4 MB | Download | |
| Order_options_How_to_configurate_BR50 | Englisch | 1.88 MB | Download | |
| Order_options_How_to_configurate_BR50 | German | 1.88 MB | Download | |
| 3D-model_STEP_SAT_IGS_BR50 | German | ZIP | 12.86 MB | Download |
| Order_options_How_to_configurate_BR50 | Englisch | 1.88 MB | Download | |
| EAC_Certificate_Signaling | German | 293.12 KB | Download | |
| Product_Sheet_DE_BR50 | German | 782.59 KB | Download | |
| UL_Certificate_BR50 | German | 225.27 KB | Download | |
| PFA.28250376042 | German | tables.type.file_edz | 98.07 KB | Download |
| PFA.28250376042 | Englisch | tables.type.file_edz | 98.07 KB | Download |
