PA 1 10-57DC M12

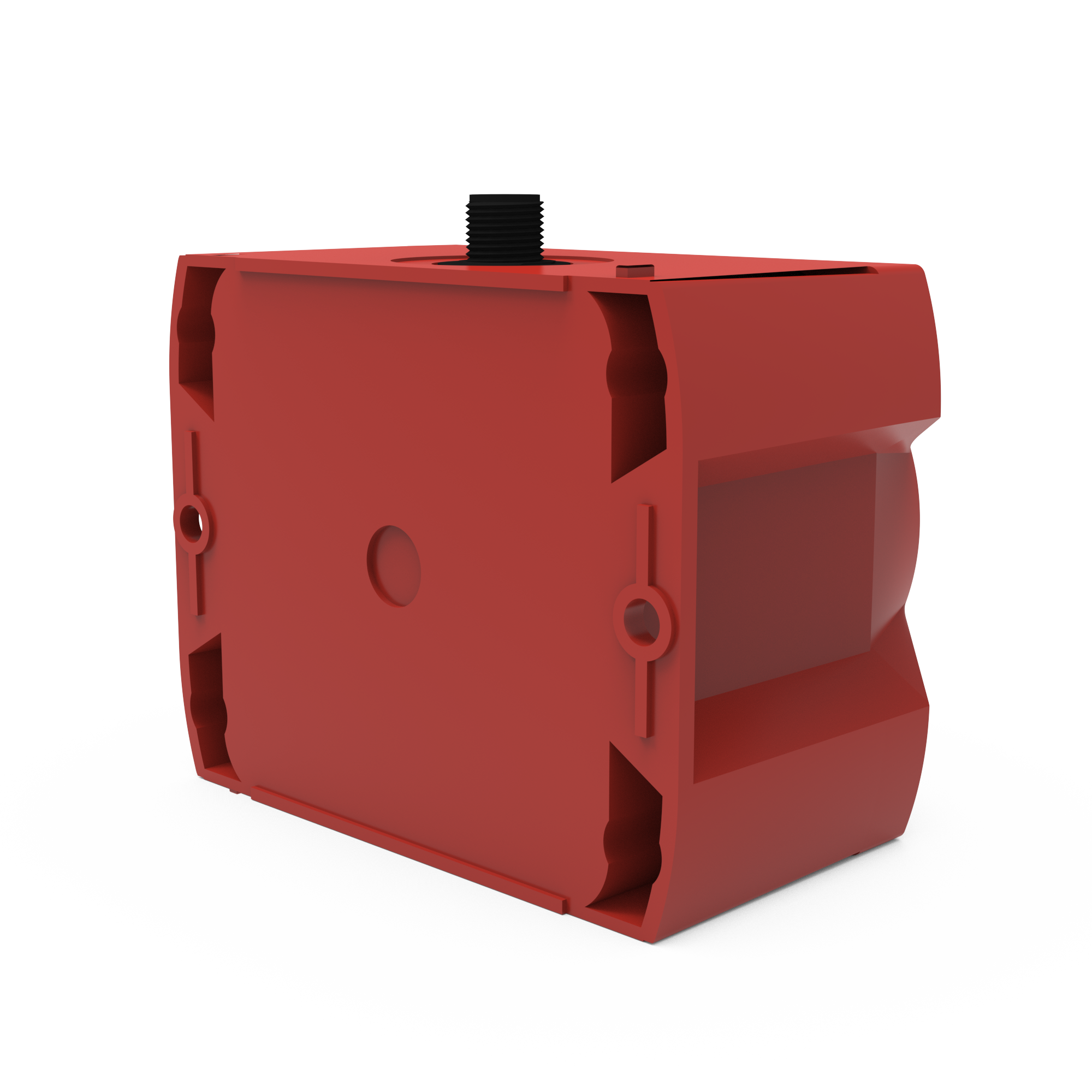

Sounder equipped with M12 connector and an extremely broad frequency range - high proportion of low tones for extraordinarily good penetration of obstacles like doors or walls. Alerting in corridors is possible, so that it is not necessary to put a sounder in every room. 64 basic tones can be selected, 80 tones are stored, that means tones for all areas of application and countries already exist (special devices are not required). 3 more tones can be selected externally. Different tones can be generated with one single device. Secure mounting - The electrical contact is only in the assembled base part. Wires can be connected according to the 'junction box' principle. No '3-hand' mounting (device - screwdriver - braid). No tension / pressure on the clamping unit, no 'pinching' of wires. IK 08 impact-proof housing. IP 66 - Locking elements are outside of the sealing area (IP), an influence on the IP protection is ruled out. Mounting methods: panel mounting and surface mounting possible. Permanent seals and locking elements Dimensions: LxWxH: 80.6 x 109.5 x 86 mm Operating temperature: -40 - + 55C 10 year warranty Approvals (depending on the voltage or optional) EN54-3 | VdS | UL | EAC | GL | MED | CNBOP
技术数据
- 信号覆盖范围 (长 | 宽 | 高)
- 13,8 m | 16 m | 16 m
- 信号覆盖宽度 m
- 16 m
- 信号覆盖长度 m
- 13,8 m
- 信号覆盖高度m
- 16 m
- 外壳颜色
- PC / ABS blend
- 电压范围（DC）
- 10-57 V DC
- 额定电压（DC）
- 12, 24, 48 V DC
- 电流类型
- DC
- 工作温度 °C
- -40 °C ... +55 °C
- IP防护等级
- 66
- NEMA
- 4/4X
- 外壳抗冲击等级
- IK08
- 最大相对湿度
- 90 %
- 电气防护能级
- 2
- 可使用率
- 100 %
- 最大电流
- 0,08 A
- 最大声音 dB(A)
- 105 dB(A)
- 声强衰减等级
- max. -12 dB
- 报警音调数量
- 80
- 外部可选音调数量
- 4
- AS-i
- not specified
- IO-Link
- no
- M12 - 连接
- yes
- 监控功能
- no
- 线缆接头
- 3x M20 knock-outs on side, 1 knock-out on back
- 接线端子
- 0.14 - 2.5mm² fine stranded, AWG24 - AWG 14
- 尺寸 (高 | 宽 | 深)
- 100,5 mm | 110 mm | 81 mm
- 净重
- 0,27 kg
- ETIM - 分类
- EC001354
- 信号覆盖范围 (长 | 宽 | 高) （英制）
- 45.28 ft. | 52.5 ft. | 52.5 ft.
- 信号覆盖宽度 （英制）
- 52.5 ft.
- 信号覆盖长度（英制）
- 45.28 ft.
- 信号覆盖高度（英制）
- 52.5 ft.
- 外壳颜色
- PC / ABS blend
- 电压范围（DC）
- 10-57 V DC
- 额定电压（DC）
- 12, 24, 48 V DC
- 电流类型
- DC
- 工作温度（英制）
- -40 °F ... +131 °F
- IP防护等级
- 66
- NEMA
- 4/4X
- 外壳抗冲击等级
- IK08
- 最大相对湿度
- 90 %
- 电气防护能级
- 2
- 可使用率
- 100 %
- 最大电流 （英制）
- 0.08 A
- 最大声音 dB(A)
- 105 dB(A)
- 声强衰减等级
- max. -12 dB
- 报警音调数量
- 80
- 外部可选音调数量
- 4
- AS-i
- not specified
- IO-Link
- no
- M12 - 连接
- yes
- 监控功能
- no
- 线缆接头
- 3x M20 knock-outs on side, 1 knock-out on back
- 接线端子
- 0.14 - 2.5mm² fine stranded, AWG24 - AWG 14
- 尺寸 (高 | 宽 | 深) （英制）
- 3.96 in. | 4.33 in. | 3.19 in.
- 净重（英制）
- 0.6 lbs
- ETIM - 分类
- EC001354
