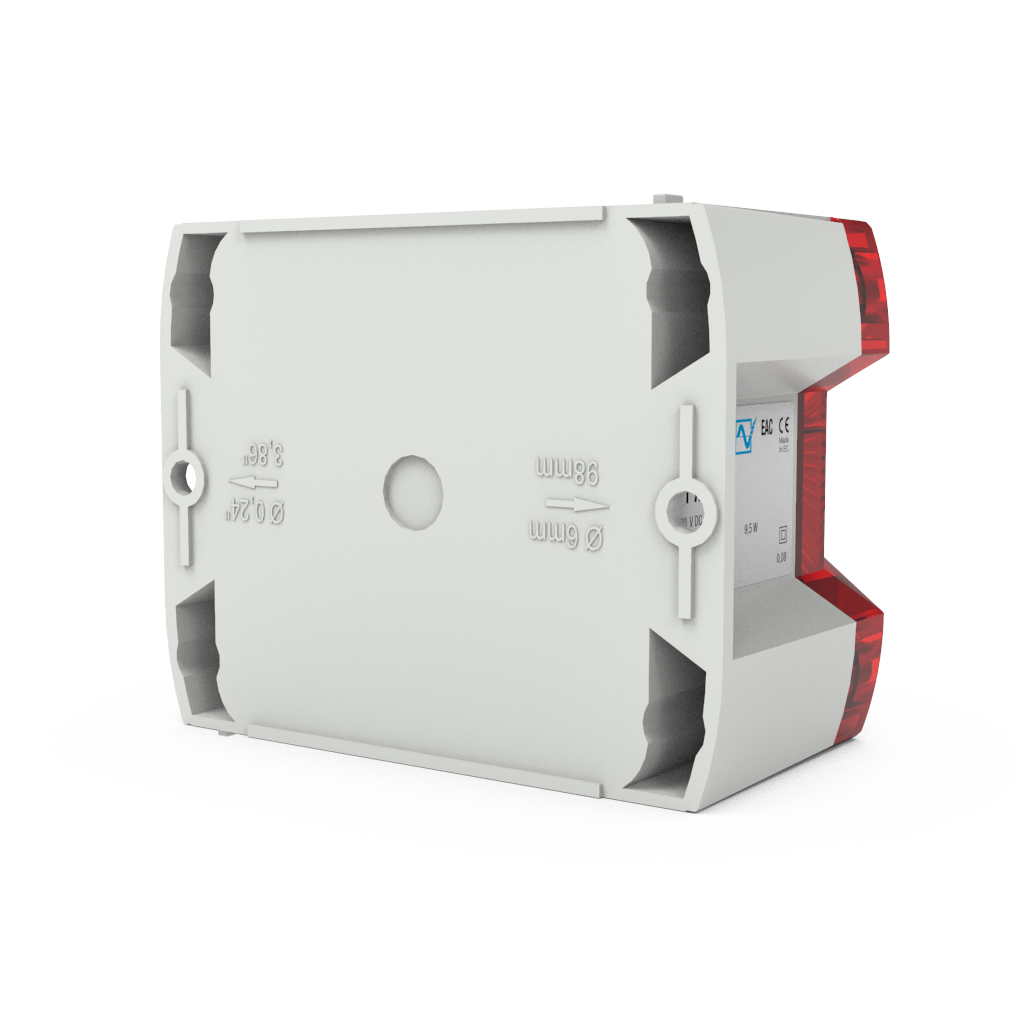

PY X-S-05 48 DC RD 7035
产品编号:
21510705055
- The compact flashing light with red lens and grey base is not only adaptable to many applications, but it also stands out due to its safe and simple mounting
- DNV-approval
- Installation options with external lugs or internal holes
- Impact-proof lens made of polycarbonate. Stabilisation of the XENON tubes for increased resistance to shock and vibration
- Also suitable for panel mounting
- Certified according to EN54-23 and VDS and therefore suitable for fire alerting
- Service life: after 8 million flashes, still 70% light emission
- Dimensions: LxWxH: 86 x 110 x 81mm
- Maximum visibility: 164m
- Optional with Soft Start Module (SSM) for reduction of starting current
- Optional with DNV and MED certification
- Housings can be stacked
- Housing colours: grey (RAL 7035), red (RAL 3000) or white (RAL 9003)
- Lens colours: clear, white, yellow, amber, red, green, blue
- Ambient temperatures: -40C to +55C. Suitable for all areas of operation and applications
- Electrical contact only in assembled base part. Wires can be connected according to the 'junction box' principle. No '3-hand' mounting (device - screwdriver - braid). No tension / pressure on the clamping unit, no 'crushed' cables or wires
- 10 year warranty
技术数据
技术数据
- 信号覆盖范围 (长 | 宽 | 高)
- 4,9 m | 6,1 m | 5,6 m
- 信号覆盖宽度 m
- 6,1 m
- 信号覆盖高度m
- 5,6 m
- 信号覆盖长度 m
- 4,9 m
- 灯罩颜色
- Red
- 外壳颜色
- PC / ABS blend
- 电压范围（DC）
- 40-60 V DC
- 额定电压（DC）
- 48 V DC
- 电流类型
- DC
- 工作温度 °C
- -40 °C ... +55 °C
- IP防护等级
- 66
- NEMA
- 4/4X
- 电气防护能级
- 2
- 最大相对湿度
- 90 %
- 可使用率
- 100 %
- 最大电流
- 0,17 A
- 灯泡类型
- XENON
- 工作模式
- Flashing Light
- 光强
- 18 cd
- 闪光能量
- 5 J
- 闪烁速率
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12 - 连接
- no
- 监控功能
- no
- 尺寸 (高 | 宽 | 深)
- 86 mm | 110 mm | 81 mm
- 净重
- 0,2 kg
- ETIM - 分类
- EC001333
- 信号覆盖范围 (长 | 宽 | 高) （英制）
- 16.08 ft. | 22.96 ft. | 18.38 ft.
- 信号覆盖宽度 （英制）
- 22.96 ft.
- 信号覆盖高度（英制）
- 18.38 ft.
- 信号覆盖长度（英制）
- 16.08 ft.
- 灯罩颜色
- Red
- 外壳颜色
- PC / ABS blend
- 电压范围（DC）
- 40-60 V DC
- 额定电压（DC）
- 48 V DC
- 电流类型
- DC
- 工作温度（英制）
- -40 °F ... +131 °F
- IP防护等级
- 66
- NEMA
- 4/4X
- 电气防护能级
- 2
- 最大相对湿度
- 90 %
- 可使用率
- 100 %
- 最大电流 （英制）
- 0.17 A
- 灯泡类型
- XENON
- 工作模式
- Flashing Light
- 光强
- 18 cd
- 闪光能量
- 5 J
- 闪烁速率
- 1 Hz
- AS-i
- not specified
- IO-Link
- no
- M12 - 连接
- no
- 监控功能
- no
- 尺寸 (高 | 宽 | 深) （英制）
- 3.39 in. | 4.33 in. | 3.19 in.
- 净重（英制）
- 0.44 lbs
- ETIM - 分类
- EC001333
